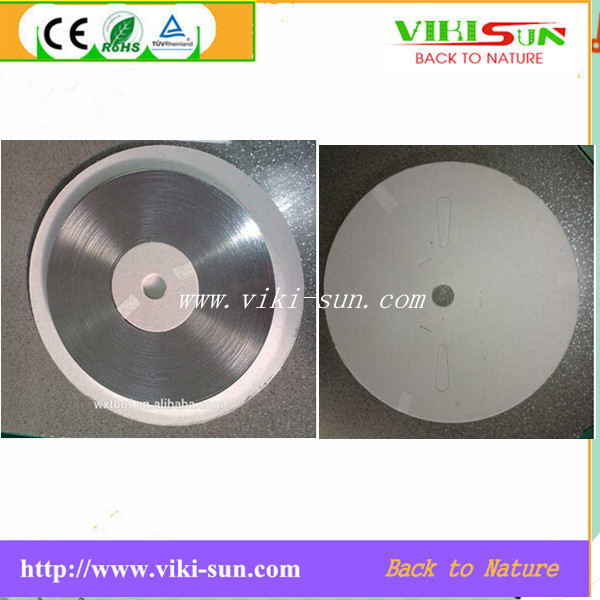

1. Tab wire, PV ribbon and Bus wire for PV solar module assemble
2. Good quality with factory supply directly.
3. Available different size for solar panel assemble.
1.Main technical parameters:
| Type | Tabbing wire | Bus wire |
| Tin-plate layer: | 60% Sn40% Pb | 60% Sn40% Pb |
| Size deviation | Thickness: ±0.01mm | Thickness: ±0.01mm |
| Width: ±0.05mm | Width: ±0.05mm | |
| Resistivity | ≤0.025×10-6Ω.m | ≤0.025×10-6Ω.m |
| Elongation | ≥30% | ≥25% |
| Tensile strength | ≥15 kgf/mm⊃2; | ≥ 20 kgf/mm⊃2; |
| Yield Strength | ≤80 Mpa | / |
| Vickers hardness | 40-50 HV | 55-70 HV |
| Bending sickle | ≤0.5%(Reel) | ≤0.4% |
2.Specification of Tabbing wire and Bussing wire:
Copper (monolayer)
Type
Width
Product specification
(thickness*width)Thickness of
Plating thickness
Width error
Thickness error
Connect
ribbon0.8
0.08*0.8
0.05
0.015
±0.05
±0.01
0.10*0.8
0.05
0.025
±0.05
±0.01
1
0.08*1.0
0.05
0.015
±0.05
±0.01
0.10*1.0
0.05
0.025
±0.05
±0.01
1.5
0.12*1.5
0.08
0.02
±0.05
±0.01
0.15*1.5
0.1
0.025
±0.05
±0.01
0.16*1.5
0.11
0.025
±0.05
±0.01
0.18*1.5
0.13
0.025
±0.05
±0.01
0.20*1.5
0.15
0.025
±0.05
±0.01
1.6
0.12*1.6
0.08
0.02
±0.05
±0.01
0.15*1.6
0.1
0.025
±0.05
±0.01
0.16*1.6
0.11
0.025
±0.05
±0.01
0.18*1.6
0.13
0.025
±0.05
±0.01
0.20*1.6
0.15
0.025
±0.05
±0.01
1.8
0.12*1.8
0.08
0.02
±0.05
±0.01
0.15*1.8
0.1
0.025
±0.05
±0.01
0.18*1.8
0.13
0.025
±0.05
±0.01
0.20*1.8
0.15
0.025
±0.05
±0.01
2
0.12*2.0
0.08
0.02
±0.05
±0.01
0.15*2.0
0.1
0.025
±0.05
±0.01
0.18*2.0
0.13
0.025
±0.05
±0.01
0.20*2.0
0.15
0.025
±0.05
±0.01
Buss
ribbon4
0.15*4.0
0.1
0.025
±0.05
±0.015
0.20*4.0
0.15
0.025
±0.05
±0.015
0.25*4.0
0.2
0.025
±0.05
±0.015
5
0.15*5.0
0.1
0.025
±0.05
±0.015
0.20*5.0
0.15
0.025
±0.05
±0.015
0.25*5.0
0.2
0.025
±0.05
±0.015
0.30*5.0
0.25
0.025
±0.05
±0.015
0.35*5.0
0.3
0.025
±0.05
±0.015
6
0.15*6.0
0.1
0.025
±0.05
±0.015
0.2*6.0
0.15
0.025
±0.05
±0.015
0.25*6.0
0.2
0.025
±0.05
±0.015
0.30*6.0
0.25
0.025
±0.05
±0.015
0.35*6.0
0.3
0.025
±0.05
±0.015
