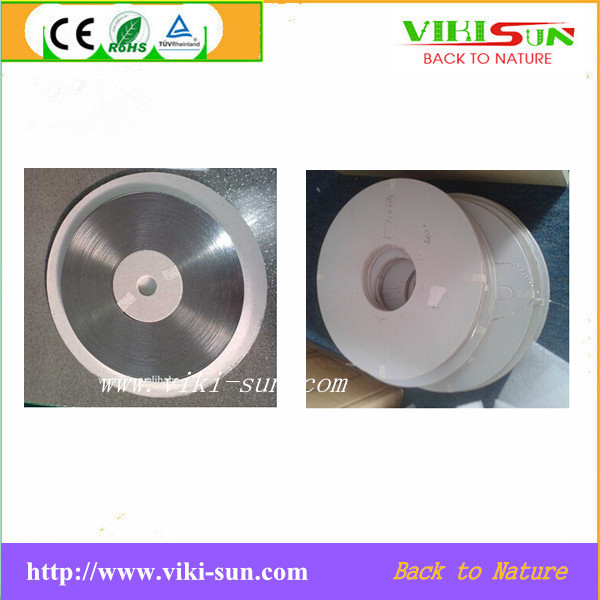

1. Tab wire, PV ribbon and Bus wire for PV solar module assemble
2. Good quality with factory supply directly.
3. Available different size for solar panel assemble.
1.Main technical parameters
| Type | Tabbing wire | Bus wire |
| Tin-plate layer: | 60% Sn40% Pb | 60% Sn40% Pb |
| Size deviation | Thickness: ±0.01mm | Thickness: ±0.01mm |
| Width: ±0.05mm | Width: ±0.05mm | |
| Resistivity | ≤0.025×10-6Ω.m | ≤0.025×10-6Ω.m |
| Elongation | ≥30% | ≥25% |
| Tensile strength | ≥15 kgf/mm⊃2; | ≥ 20 kgf/mm⊃2; |
| Yield Strength | ≤80 Mpa | / |
| Vickers hardness | 40-50 HV | 55-70 HV |
| Bending sickle | ≤0.5%(Reel) | ≤0.4% |
2.Specification of Tabbing wire and Bussing wire:
| Type | Width | Product specification (thickness*width) |
Thickness of
Copper |
Plating thickness
(monolayer) |
Width error | Thickness error |
| Connect ribbon |
0.8 | 0.08*0.8 | 0.05 | 0.015 | ±0.05 | ±0.01 |
| 0.10*0.8 | 0.05 | 0.025 | ±0.05 | ±0.01 | ||
| 1 | 0.08*1.0 | 0.05 | 0.015 | ±0.05 | ±0.01 | |
| 0.10*1.0 | 0.05 | 0.025 | ±0.05 | ±0.01 | ||
| 1.5 | 0.12*1.5 | 0.08 | 0.02 | ±0.05 | ±0.01 | |
| 0.15*1.5 | 0.1 | 0.025 | ±0.05 | ±0.01 | ||
| 0.16*1.5 | 0.11 | 0.025 | ±0.05 | ±0.01 | ||
| 0.18*1.5 | 0.13 | 0.025 | ±0.05 | ±0.01 | ||
| 0.20*1.5 | 0.15 | 0.025 | ±0.05 | ±0.01 | ||
| 1.6 | 0.12*1.6 | 0.08 | 0.02 | ±0.05 | ±0.01 | |
| 0.15*1.6 | 0.1 | 0.025 | ±0.05 | ±0.01 | ||
| 0.16*1.6 | 0.11 | 0.025 | ±0.05 | ±0.01 | ||
| 0.18*1.6 | 0.13 | 0.025 | ±0.05 | ±0.01 | ||
| 0.20*1.6 | 0.15 | 0.025 | ±0.05 | ±0.01 | ||
| 1.8 | 0.12*1.8 | 0.08 | 0.02 | ±0.05 | ±0.01 | |
| 0.15*1.8 | 0.1 | 0.025 | ±0.05 | ±0.01 | ||
| 0.18*1.8 | 0.13 | 0.025 | ±0.05 | ±0.01 | ||
| 0.20*1.8 | 0.15 | 0.025 | ±0.05 | ±0.01 | ||
| 2 | 0.12*2.0 | 0.08 | 0.02 | ±0.05 | ±0.01 | |
| 0.15*2.0 | 0.1 | 0.025 | ±0.05 | ±0.01 | ||
| 0.18*2.0 | 0.13 | 0.025 | ±0.05 | ±0.01 | ||
| 0.20*2.0 | 0.15 | 0.025 | ±0.05 | ±0.01 | ||
| Buss ribbon |
4 | 0.15*4.0 | 0.1 | 0.025 | ±0.05 | ±0.015 |
| 0.20*4.0 | 0.15 | 0.025 | ±0.05 | ±0.015 | ||
| 0.25*4.0 | 0.2 | 0.025 | ±0.05 | ±0.015 | ||
| 5 | 0.15*5.0 | 0.1 | 0.025 | ±0.05 | ±0.015 | |
| 0.20*5.0 | 0.15 | 0.025 | ±0.05 | ±0.015 | ||
| 0.25*5.0 | 0.2 | 0.025 | ±0.05 | ±0.015 | ||
| 0.30*5.0 | 0.25 | 0.025 | ±0.05 | ±0.015 | ||
| 0.35*5.0 | 0.3 | 0.025 | ±0.05 | ±0.015 | ||
| 6 | 0.15*6.0 | 0.1 | 0.025 | ±0.05 | ±0.015 | |
| 0.2*6.0 | 0.15 | 0.025 | ±0.05 | ±0.015 | ||
| 0.25*6.0 | 0.2 | 0.025 | ±0.05 | ±0.015 | ||
| 0.30*6.0 | 0.25 | 0.025 | ±0.05 | ±0.015 | ||
| 0.35*6.0 | 0.3 | 0.025 | ±0.05 | ±0.015 |
